Motion Planning using Sampling Based Methods

picture of project picture of project

Project Description

This project focuses on implementing sampling-based motion planning algorithms in 3D and 2D envinronments.

For the 3D environments, Rapidly-exploring Random Tree (RRT) and Bi-directional Rapidly-exploring Random Tree (BiRRT) algorithms are applied to a simplified 3-DOF UR5 robot arm manipulator. The goal is for the end link of the arm to go from its initial position to the target position, without colliding with obstacles in the environment. This was simulated in pybullet.

For the 2D environments, Rapidly-exploring Random Tree (RRT) and Rapidly-exploring Random Tree star (RRT*) algorithms are applied to three different robot systems: 2D point-mass, circular rigid body, and a rectangular rigid body. Each robot system needs to reach the target location, without colliding with the obstacles in the environment.

Media

3D Environment: BiRRT w/smoothing

BiRRT w/smoothing will always generate a solution (path) if one exists and is much faster and smoother than the traditional RRT.

2D Environment: RRT vs RRTStar

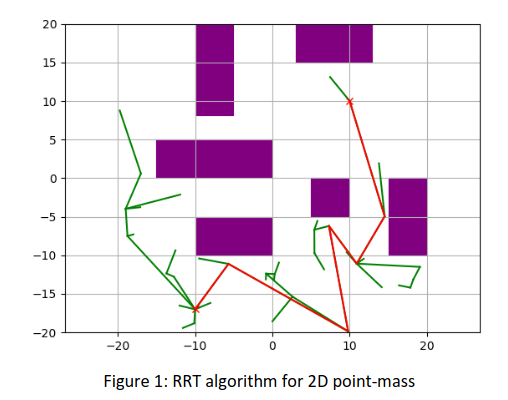

RRT finds a path, but does not return the most optimal one

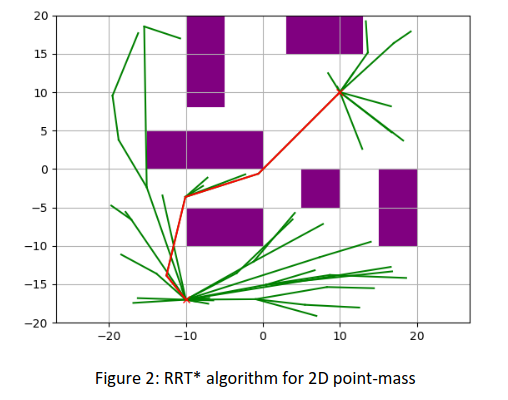

RRT* is slower than RRT, but it is guaranteed to return the shortest path

Reports

Open the full project report by clicking: doc
